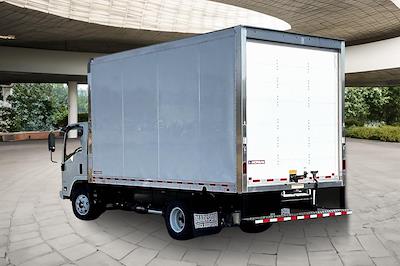

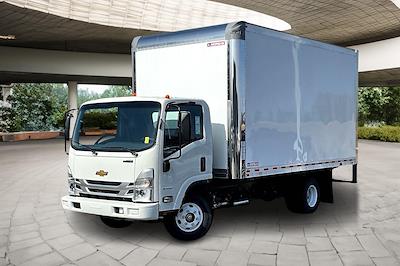

2025 Chevrolet LCF 3500HG Regular Cab 4x2 Morgan Truck Body Box Truck
Stock #125186
Vehicle Notes
The <b>Napleton Auto Group</b> promotes a no pressure buying experience that puts the customer in charge of the buying process, and for over 80 years,…
Read More…
Read More…
Chassis Details
Stock Number
125186
Stock Type
New
Year
2025
Make
Chevrolet
Model
LCF 3500HG
Class
3
GVWR
12,000
Drivetrain
4x2
Cab Type
Regular
Vehicle Trim
Work Truck
Vehicle VIN
54DBDW1D2SS204917
Interior Color
Medium Ash Gray
Exterior Color Description
Arc White
Engine Cylinder Count
8
Engine
6.6 Litre V8 Gas Engine
Transmission Type
Automatic
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Brake Type
Hydraulic
Vehicle Options
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm).
- Rear axle, 3.90 ratio
- Drivetrain, rear-wheel drive
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 150" (381.0 cm)
- GVWR, 12,000 lbs. (5443 kg)
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Vehicle Application Truck
- Brakes, 4-wheel antilock, front and rear disc
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Exhaust, single outlet
- Tires, front, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Tires, rear, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Assist steps
- LED Headlamps
- Grille, Silver
- Glass, tinted
- Mirror, outside left-hand and right-hand with integral convex mirrors
- Windshield wiper, pulse, wet arm
- Audio system feature, 2 speakers
- Cup holders
- Floor Mats
- Steering wheel, urethane
- Steering column, Tilt-Wheel
- Driver Information Center
- Windows, power
- Cruise control, electronic, automatic
- Air conditioning, single-zone manual, integral in-dash mounted
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime running lamps
- View All
Body Details
Manufacturer
Body Type
Box Truck
Body Line
Gold Star
Body Model
GVSD09716096
Body Material
Aluminum
Body Width
96"
Body Length
192"
Body Inside Height
97"
Body Inside Length
190.38
Body Weight
2466 lbs
Bumper Description
5” Structural Bumper With Pooched Surface And Closure Plate
Door Type
Overhead
Door Height
91.25"
Door Width
88"
Floor Description
Laminated
Floor Material
Hardwood
Floor Thickness
1-1/8"
Lighting Description
Dome Light With Indicator Switch Mounted In Cab Dash
Lighting Location
Interior
Lighting Type
LED
Lighting Description
Sealed Clearance Lights | Per FMVSS-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header
Lighting Location
Exterior
Mud Flaps Description
Morgan 24" x 36" Black
Roof Type
Translucent
Roof Description
.062 Glassboard Sheet
Cargo Control Description
Recessed E-Track - Each Side - 26.50" & 55.50" Floor to Center
Side Description
.040 Aluminum Sidewalls | Z-Shaped Galvanized Side Posts on 16" Centers | Full Height 3/8" Plywood Liner
Walkramp Description
Todco Spring Assist Walkramp
Walkramp Material
Aluminum
Gold Star Features
- SUBFRAME - 3" I-beam Crossmembers On 12" Centers With 4" Longrail , Mylar Tape Is Applied Between All Steel Subframe Components And Extruded Aluminum Lower Bottom Rails To Prevent Corrosion
- FLOOR - 1- 1/8” Laminated Hardwood Fastened To Subframe With 2 Countersunk Screws Per Floor Board Per Cross Member In A Staggered Pattern. Floor Boards Are Ship Lapped And Preundercoated For Protection From Elements.
- THRESHOLD - Steel Galvanized Angle Flush To Rear
- REAR DOOR - Overhead Roll-up Door
- REAR FRAME - Galvannealed Steel -painted Imron White, Includes Built-in Header Design, Clearance Light Protector And Rain Deflector, Curbside And Roadside Grab-handles
- ROOF - .032” One-piece Aluminum Sheet With Anti-snag Roof Bows On 24” Centers With Crowned Roof Design Which Prevents Water/Ice Pooling
- SKINS - .040“ Aluminum, Pre-painted White
- SIDE WALL - Extruded Aluminum Top And Bottom Rails With 1-3/8” Deep Galvanized Steel Z-shaped Vertical Posts Installed On 16” Centers
- FRONT END - Aerodynamic Aluminum Radii and Morgan’s Patented Poly-tuff Corner Caps
- BUMPER - 5” Structural Bumper With Pooched Surface And Closure Plate
- INTERIOR LIGHTING - (1) Domelight With Indicator Switch Mounted In Cab Dash
- EXTERIOR LIGHTING - Led Sealed Clearance Lights, Per Fmvss-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header.
- MOUNTING - Full Mount-u Bolt
- MUDFLAPS - Morgan 24" X 36" Black
| Call For Pricing |
Pricing Details
| MSRP | $86,411 |
| Consumer Cash | - $1,750 |
| Dealer Discount | - $7,500 |
| Price | $77,161 |
| Total Savings | $9,250 |
